管帽
|
Nominal |
Outside Dia |
Socket Type |
Structural Diameter |
|

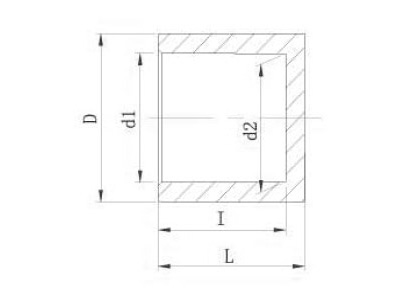

SIZE |
D |
d1 |
d2 |
I |
L |
|
1/2" |
30.00 |
21.40 |
21.25 |
24.00 |
28.00 |
|
3/4" |
35.00 |
26.75 |
26.58 |
27.00 |
31.00 |
|
1" |
44.00 |
33.52 |
33.28 |
30.00 |
35.00 |
|
1-1/4" |
54.00 |
42.28 |
42.05 |
34.00 |
40.00 |
|
1-1/2" |
60.00 |
48.40 |
48.12 |
37.00 |
43.00 |
|
2" |
73.00 |
60.45 |
60.18 |
40.00 |
48.00 |
|
2-1/2" |
88.00 |
73.30 |
72.85 |
46.50 |
54.00 |
|
3" |
105.00 |
89.25 |
88.70 |
50.00 |
58.00 |
|
4" |
132.00 |
114.60 |
114.10 |
60.00 |
69.00 |
|
6" |
162.00 |
141.50 |
141.10 |
69.00 |
90.00 |
