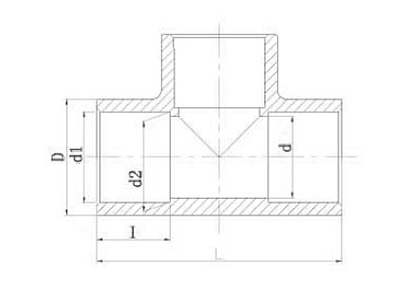

正三通
|
Nominal |
Socket Type |
Structural Diameter |
|
SIZE |
d1 |
d2 |
I |
D |
d |
L |
|
1/2" |
21.40 |
21.25 |
30.00 |
24.00 |
16.00 |
74.00 |
|
3/4" |
26.75 |
26.58 |
35.00 |
27.00 |
22.00 |
84.00 |
|
1" |
33.52 |
33.28 |
44.00 |
30.00 |
30.00 |
96.00 |
|
1-1/4" |
42.28 |
42.05 |
54.00 |
34.00 |
38.00 |
114.00 |
|
1-1/2" |
48.4 |
48.12 |
60.00 |
37.00 |
43.00 |
126.00 |
|
2" |
60.45 |
60.18 |
73.00 |
40.00 |
54.00 |
146.00 |
|
2-1/2" |
73.30 |
72.85 |
88.00 |
46.50 |
67.00 |
171.00 |
|
3" |
89.25 |
88.70 |
105.00 |
50.00 |
82.00 |
194.00 |
|
4" |
114.60 |
114.10 |
132.00 |
60.00 |
106.00 |
238.00 |
|
5" |
141.50 |
141.10 |
162.00 |
69.00 |
133.00 |
291.00 |
|
6" |
168.50 |
168.00 |
191.00 |
79.00 |
158.00 |
336.00 |
|
8" |
219.80 |
218.70 |
246.00 |
102.00 |
214.00 |
433.00 |
