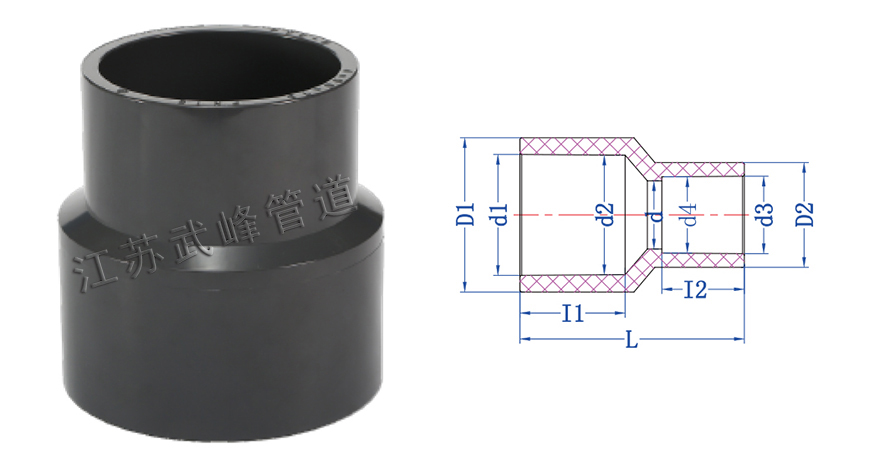

異徑直接
|
Nominal |
|
Socket Type |
Structural Diameter |
|
SIZE |
D |
d1 |
d2 |
d1 |
L |
|
3/4"*1/2" |
25 |
20.3 |
20.1 |
16.0 |
20.00 |
|
1"*3/4" |
32 |
25.3 |
25.1 |
20.0 |
24.00 |
|
1-1/4"*1" |
40 |
32.3 |
32.1 |
23.0 |
28.00 |
|
1-1/2"*1-1/4" |
50 |
40.3 |
40.1 |
28.0 |
32.00 |
|
2"*1-1/2" |
63 |
50.3 |
50.1 |
32.0 |
38.00 |
|
2-1/1"*2" |
75 |
63.3 |
63.1 |
38.0 |
42.00 |
|
3"*2" |
90 |
63.3 |
63.1 |
38.0 |
61.00 |
|
3"*2-1/2" |
90 |
75.3 |
75.1 |
45.0 |
61.00 |
|
4"*2" |
110 |
63.3 |
63.1 |
38.0 |
73.00 |
|
4"*3" |
110 |
90.3 |
90.1 |
51.0 |
73.00 |
