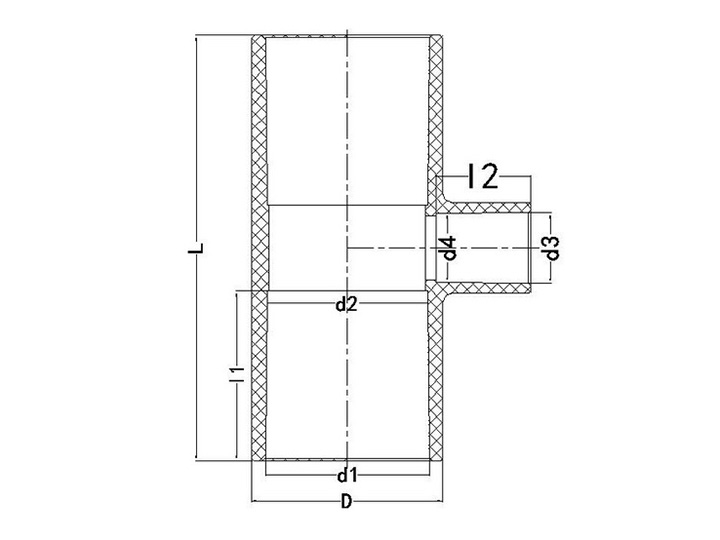

異徑三通
 |
 |
|
Nominal |
Socket Type |
Structural Diameter |
|
SIZE |
d1 |
d2 |
I1 |
d3 |
d4 |
I2 |
D |
d |
L |
|
3/4"*1/2" |
26.45 |
25.42 |
35.0 |
22.40 |
21.52 |
30.0 |
34.0 |
23.5 |
90.0 |
|
1"*1/2" |
32.55 |
31.37 |
40.0 |
22.40 |
21.52 |
30.0 |
41.0 |
30.0 |
105.0 |
|
1"*3/4" |
32.55 |
31.37 |
40.0 |
26.45 |
25.42 |
35.0 |
41.0 |
30.0 |
105.0 |
|
1-1/4"*/2" |
38.60 |
37.31 |
44.0 |
22.40 |
21.52 |
30.0 |
47.0 |
36.0 |
118.0 |
|
1-1/4"*3/4" |
38.60 |
37.31 |
44.0 |
26.45 |
25.42 |
35.0 |
47.0 |
36.0 |
118.0 |
|
1-1/4"*1" |
38.60 |
37.31 |
44.0 |
26.45 |
25.42 |
35.0 |
47.0 |
36.0 |
118.0 |
|
1-1/2"*1/2" |
48.70 |
47.21 |
55.0 |
22.40 |
21.52 |
30.0 |
58.0 |
45.5 |
146.0 |
|
1-1/2"*3/4" |
48.70 |
47.21 |
55.0 |
26.45 |
25.42 |
35.0 |
58.0 |
45.5 |
146.0 |
|
1-1/2"*1" |
48.70 |
47.21 |
55.0 |
32.55 |
31.37 |
40.0 |
58.0 |
45.5 |
146.0 |
|
1-1/2"*1-1/4" |
48.70 |
47.21 |
55.0 |
38.60 |
37.31 |
44.0 |
58.0 |
45.5 |
146.0 |
|
2"*1/2" |
60.80 |
59.10 |
63.0 |
22.40 |
21.52 |
30.0 |
70.0 |
57.0 |
156.0 |
|
2"*3/4" |
60.80 |
59.10 |
63.0 |
26.45 |
25.42 |
35.0 |
70.0 |
57.0 |
156.0 |
|
2"*1" |
60.80 |
59.10 |
63.0 |
32.55 |
31.37 |
40.0 |
70.0 |
57.0 |
156.0 |
|
2"*1-1/4" |
60.80 |
59.10 |
63.0 |
38.60 |
37.31 |
44.0 |
70.0 |
57.0 |
156.0 |
|
2"*1-1/2" |
60.80 |
59.10 |
63.0 |
48.70 |
47.21 |
55.0 |
70.0 |
57.0 |
156.0 |
|
2-1/2"*1-1/2" |
76.60 |
75.30 |
64.0 |
48.70 |
47.21 |
55.0 |
88.0 |
73.8 |
183.0 |
|
2-1/2"*2" |
76.60 |
75.30 |
64.0 |
60.80 |
59.10 |
63.0 |
88.0 |
73.80 |
183.0 |
|
3"*1-1/2" |
89.60 |
88.29 |
64.0 |
48.70 |
47.21 |
55.0 |
102.0 |
86.8 |
198.0 |
|
3"*2" |
89.60 |
88.29 |
64.0 |
60.80 |
59.10 |
63.0 |
102.0 |
86.8 |
198.0 |
|
3"*2-1/2" |
89.60 |
88.29 |
64.0 |
76.60 |
75.30 |
64.0 |
102.0 |
86.8 |
198.0 |
|
4"*2" |
114.70 |
113.20 |
84.0 |
60.80 |
59.10 |
63.0 |
129.4 |
110.0 |
253.0 |
|
4"*2-1/2" |
114.70 |
113.20 |
84.0 |
76.60 |
75.30 |
64.0 |
129.40 |
110.0 |
253.0 |
|
4"*3" |
114.70 |
113.20 |
84.0 |
89.60 |
88.29 |
64.0 |
129.4 |
110.0 |
253.0 |
