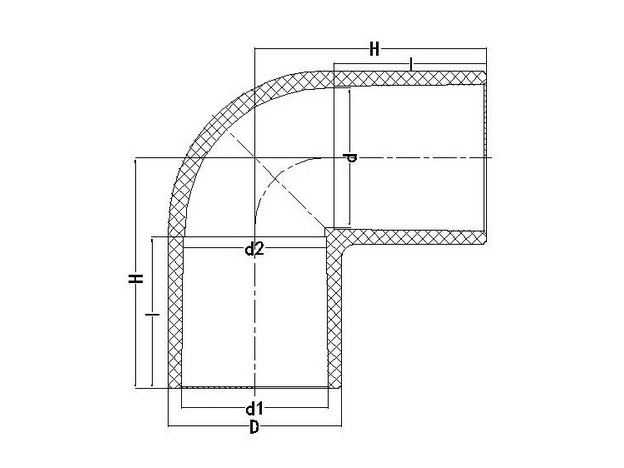

90°彎頭
|
Nominal |
Socket Type |
Structural Diameter |
|
SIZE |
d1 |
d2 |
I |
D |
d |
H |
|
1/2" |
22.40 |
21.52 |
30.0 |
29.50 |
20.0 |
42.0 |
|
3/4" |
26.45 |
25..42 |
35.0 |
34.00 |
24.0 |
50.0 |
|
1" |
32.55 |
31.37 |
40.0 |
41.00 |
30.0 |
58.0 |
|
1-1/4" |
38.60 |
37.31 |
44.0 |
47.00 |
36.0 |
65.0 |
|
1-1/2" |
48.70 |
47.21 |
55.0 |
58.00 |
46.0 |
82.0 |
|
2" |
60.80 |
59.10 |
63.0 |
72.00 |
58.0 |
96.0 |
|
2-1/2" |
76.60 |
75.30 |
64.0 |
88.00 |
73.8 |
110.0 |
|
3" |
89.60 |
88.29 |
64.0 |
106.00 |
86.8 |
120.0 |
|
4" |
114.70 |
113.20 |
84.0 |
135.00 |
110.8 |
150.0 |
