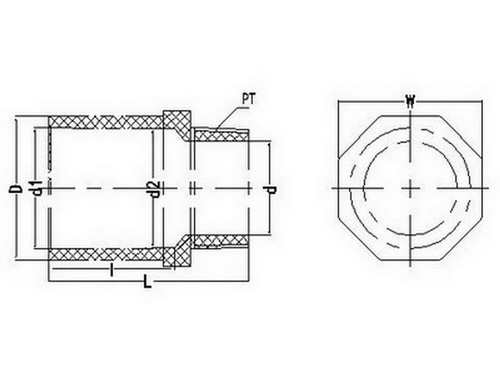

外牙接頭（SXT）
|
Nominal |
Socket Type |
Structural Diameter |
|
SIZE |
d1 |
d2 |
I |
D |
d |
L |
W |
PT（牙/寸） |
|
1/2" |
22.40 |
21.52 |
30.0 |
29.0 |
13.0 |
53.5 |
29.0 |
14 |
|
3/4" |
26.45 |
25.42 |
35.0 |
34.0 |
17.0 |
61.5 |
34.0 |
14 |
|
1" |
32.55 |
31.37 |
40.0 |
41.0 |
22.5 |
69.5 |
41.0 |
11 |
|
1-1/4" |
38.60 |
37.31 |
44.0 |
47.0 |
31.0 |
73.0 |
47.0 |
11 |
|
1-1/2" |
48.70 |
47.21 |
55.0 |
58.0 |
36.0 |
86.0 |
58.0 |
11 |
|
2" |
60.80 |
59.10 |
63.0 |
72.0 |
47.0 |
100.0 |
72.0 |
11 |
|
2-1/2" |
76.60 |
75.30 |
64.0 |
88.0 |
62.5 |
116.0 |
88.0 |
11 |
|
3" |
89.60 |
88.29 |
64.0 |
106.0 |
74.0 |
127.5 |
106.0 |
11 |
|
4" |
114.70 |
113.20 |
84.0 |
135.0 |
96.5 |
154.0 |
135.0 |
11 |
